Easy Camp Eclipse 500 Tent Pole Repair Pack

A repair kit for the Easy Camp Eclipse 500 Tent. These replacement fibreglass tent pole sections will be supplied longer than required and will need to be cut down to size with a junior hacksaw.

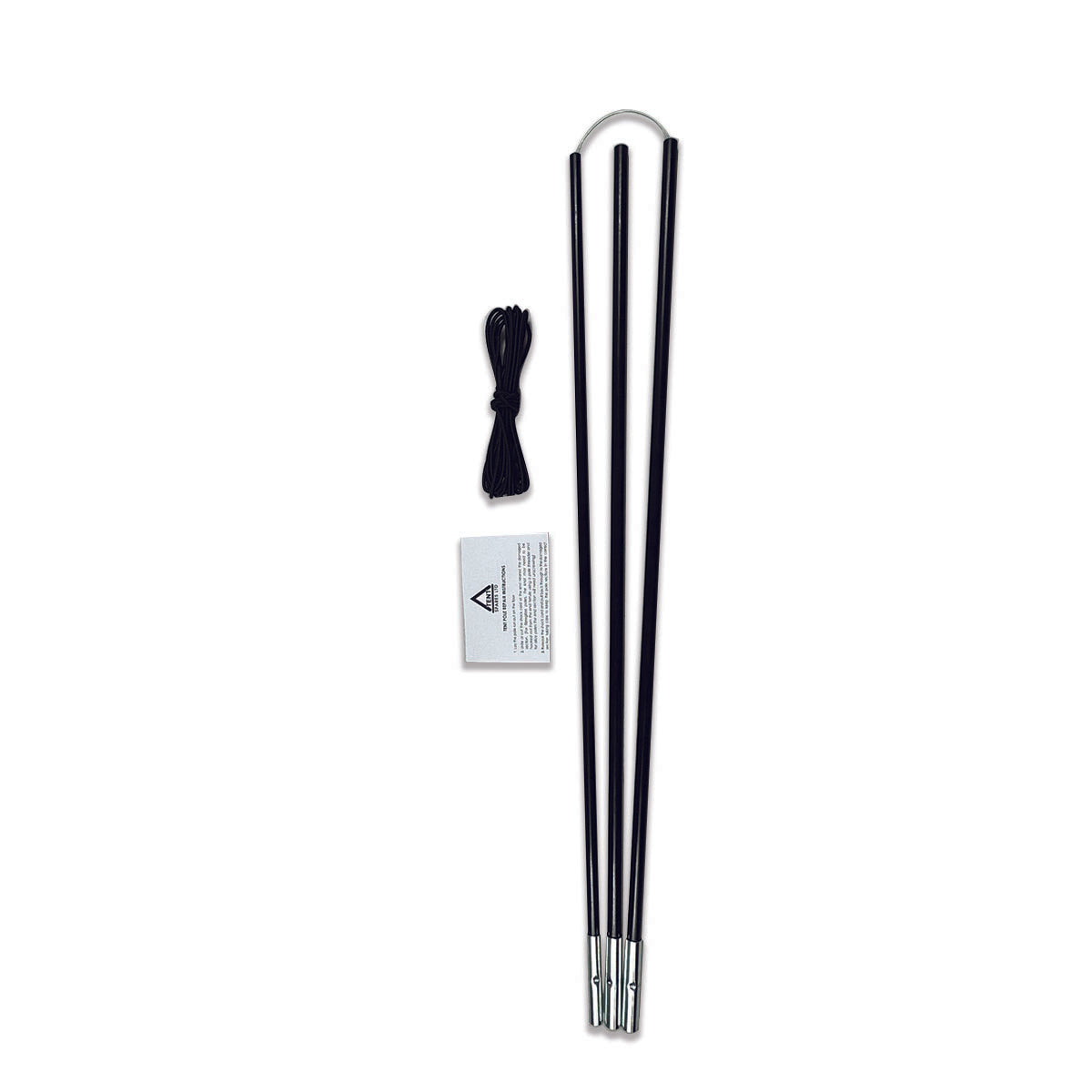

Consists of:

• 2 x 11mm and 1 x 9.5mm black fibreglass pole sections all fitted with a metal end ferrule
• 1 Length of shock cord elastic which measures 4m and will stretch to 7m approx
• Threading Tool which is a steel wire with a sharp hook on one end, used to re-thread the elastic

Usage: Ideal as an emergency repair kit or to replace broken sections within a pole run. Replacement fibreglass tent pole sections are supplied at a length of 68.5cm (including ferrule) so you may need to cut them to size with a junior hacksaw.

How to use:

Disassemble the current pole assembly as follows:

1. Hook the elastic holding pole sections at the end nearest the broken section and pull out so knot can be undone (or if necessary cut off).
2. Release the elastic and pull back through pole sections to the broken section taking care to keep the pole sections in the correct order.
3. Remove damaged section.

Reassemble poles as follows:

1. Replace broken section with new section.
2. Using a length of wire fixed to the end of the elastic (e.g. using tape) feed the elastic through all the poles in the correct order and re-knot at end.
